HD G56 Front Case Half: Reinforced Main Case for High-Load Cummins Builds
Quick Links:
- Shop HD G56 Front Case Half
- Shop Complete Reman G56 Transmission
- Browse All Manual Transmissions
- Contact TST
If you're running a tuned Cummins, towing heavy, or pushing serious torque through a G56 6-speed manual, you already know the weak link: the front case half. OEM aluminum housings weren't designed for the kind of abuse modern diesel trucks dish out—especially when you're stacking power or hauling loads that would make a factory engineer nervous.
Cracked cases are common. Warped mating surfaces, stripped fill ports, and flexing under load all lead to the same outcome: leaks, noise, and eventually a full teardown. Tennessee Standard Transmissions developed the HD G56 Front Case Half to solve that problem. This isn't a band-aid fix—it's a purpose-built upgrade for trucks that work for a living.
What Is the G56 Front Case Half (Main Case)?
The front case half—also called the main case—is the primary aluminum housing that contains the input shaft, countershaft, and the majority of the G56's internal components. It bolts to the rear case (extension housing) and forms the structural backbone of the transmission.
When you're under load, this case absorbs torsional stress, vibration, and heat. On stock trucks, it does fine. On modified or hard-working rigs, it's often the first component to show fatigue. Cracks typically appear around mounting bosses, the fill port, or along the case seam where rigidity is compromised.

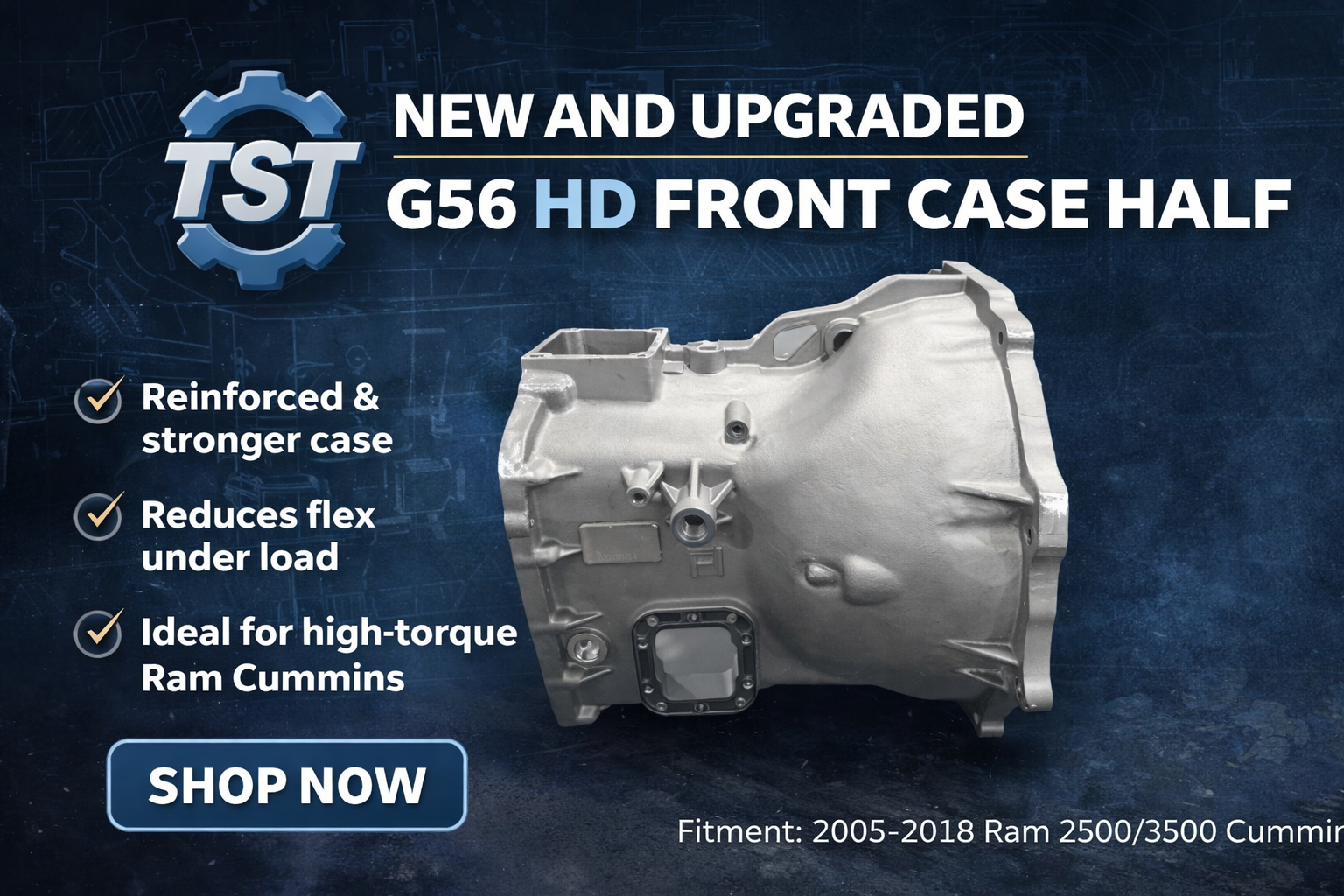

What Makes the TST HD G56 Front Case Half Different?
Tennessee Standard Transmissions spent close to two years engineering, testing, and refining this case. The goal was simple: build a front case that could handle the real-world demands of towing, tuning, and high-mileage commercial use without the common failure modes of the OEM part.
Here's what sets it apart:
The HD case weighs approximately 40 pounds compared to the typical OEM case at around 32 pounds. That extra weight—roughly 20% more—comes from strategically added aluminum thickness throughout the casting. TST didn't just make it heavier; they distributed material where it matters most: around high-stress zones, mounting points, and areas prone to flexing under load.
Common failure points are reinforced. The fill port, bolt bosses, and screw holes all received additional material to resist cracking and thread stripping. The case seam area—where the front and rear halves mate—is stiffer, which helps maintain proper alignment and reduces the risk of warping during thermal cycling.
The result is a case that resists deflection under heavy torque, maintains tighter tolerances over time, and stands up to the kind of abuse that would crack a stock housing. It's built for trucks that tow fifth-wheels cross-country, haul equipment daily, or run tuned power levels that exceed factory ratings.
| OEM G56 Case (Typical) | HD Case Half Upgrade |
|---|---|
| ~32 lb weight | ~40 lb weight (~20% heavier) |
| Standard aluminum thickness | Increased thickness in high-stress areas |
| Prone to cracking under high load | Reinforced around common failure zones |
| Standard fill port & bolt holes | Reinforced fill port & fastener bosses |
| Moderate stiffness under load | Improved rigidity, reduced deflection |
Who Should Upgrade?
This case isn't for everyone. If you're running a bone-stock truck with light-duty use, the OEM case will likely serve you fine. But if any of the following apply, the HD front case is worth serious consideration:
- Heavy towing: Fifth-wheel trailers, gooseneck hauling, or frequent heavy loads
- Tuned or modified trucks: Increased torque from tuning, injectors, or turbo upgrades
- Cracked or damaged case: Replacing a failed OEM case and want to avoid a repeat
- Rebuilders and transmission shops: Offering customers a proven upgrade during a rebuild
- Preventative upgrade: Planning a rebuild and want to future-proof the transmission
Fitment Notes (Verify Before Ordering)
The HD G56 Front Case Half is designed for the G56 6-speed manual transmission found in 2005–2018 Ram 2500 and Ram 3500 trucks equipped with the 5.9L or 6.7L Cummins diesel engine. This includes both 4x4 and 4x2 configurations.
Important: Fitment can vary based on build date, transmission serial number, and specific vehicle configuration. Before ordering, verify your application with Tennessee Standard Transmissions. We're here to help confirm compatibility and answer any technical questions. Contact us if you're unsure.
Builder Notes (What We Recommend During Install)
Installing the HD front case requires a full transmission teardown. This is not a bolt-on upgrade—you're replacing the main housing, which means every internal component comes out. Here's what we recommend:
- Professional builder preferred: This job requires transmission-specific tools, experience, and a clean workspace.
- Inspect all internals: While you're in there, check bearings, synchronizers, shift forks, and shafts for wear.
- Verify endplay and clearances: Proper shimming and endplay specs are critical for longevity.
- Use the correct sealant: Follow OEM guidelines for case sealant—don't over-apply or use the wrong product.
- Torque to spec: Case bolts must be torqued in the proper sequence to factory specifications to avoid warping.
If you're not equipped to handle the rebuild yourself, Tennessee Standard Transmissions can rebuild your G56 and install the HD case as part of the process. Reach out to discuss rebuild services and core exchange options.
Ordering & Shipping
The HD G56 Front Case Half is in stock and ready to ship. Orders usually ship within 5–10 business days. We package transmission components with care to ensure they arrive ready to install.
Need it faster? Contact us to discuss expedited shipping options. We work with builders and shops across the country and understand the urgency when a truck is down.
Frequently Asked Questions
Is this the whole transmission?
No. This is the front case half (main case) only. It does not include internal components, shafts, gears, or the rear extension housing. If you need a complete remanufactured G56 transmission, check out our reman units here.
Is this just the front case half / main case?
Yes. This is the reinforced aluminum front case half that houses the input shaft, countershaft, and related components. It's designed to replace the OEM front case during a rebuild.
Will it fit my year?
The HD case is designed for 2005–2018 Ram 2500/3500 trucks with the G56 6-speed manual and Cummins diesel engine. Fitment can vary, so verify your application before ordering. Contact TST if you need help confirming compatibility.
Do I need special tools?
Yes. Installing this case requires a full transmission teardown, which means you'll need bearing pullers, snap ring pliers, a press, dial indicators for endplay checks, and a torque wrench. If you don't have the tools or experience, we recommend working with a qualified transmission builder.
Can TST rebuild my G56 and include this case?
Absolutely. We offer full G56 rebuild services and can install the HD front case as part of the build. We also offer core exchange programs. Contact us to discuss your specific needs and get a quote.
What's the warranty?
The HD G56 Front Case Half is covered under Tennessee Standard Transmissions' standard parts warranty. Contact us for full warranty details and terms.
Can I return it if it doesn't fit?
We accept returns on unused parts in original condition. Because this is a specialized component, we strongly recommend verifying fitment before ordering. Reach out to our team if you have any questions—we'd rather help you get it right the first time.
Ready to Upgrade Your G56?
Whether you're rebuilding a cracked case or building a transmission that can handle serious power, the HD G56 Front Case Half is the foundation you need. Tennessee Standard Transmissions stocks proven solutions for builders, shops, and truck owners who demand more than factory specs.
